Overview

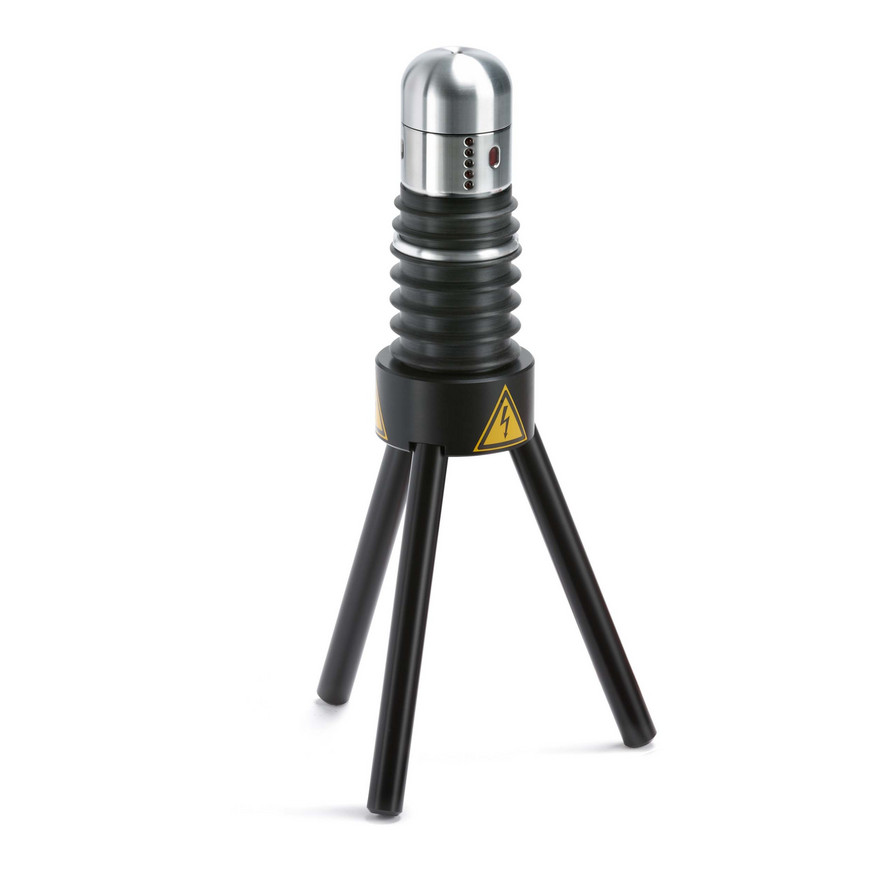

The TD30 was the first small portable VLF TD system with wireless Bluetooth technology that really made performing TD testing in the field easy to perform. Compared to other TD systems on the market that required several connections to be made or were large and bulky, the TD30 requires very few connections and does not use any special batteries or fiber optic cabling that is prone to damage in the field environment. The TD30 provides the testing and commissioning engineer with versatile high voltage tan delta measurement suitable for testing XLPE, PE, EPR and PILC cables or other electrical equipment. The TD30 is designed to work with the HVA34 VLF test system making it suitable for testing 25kV and below cable systems. The unit is supplied with a host of accessories including rugged transport case, corona protection, Bluetooth dongle, jumper cable, ground cable, C type batteries and charger.

Features

• Ultra light and compact design
• Easy handling
• Testing and diagnostics simultaneously
• Transfer of test results via Bluetooth
• Fully automatic reporting
• No complicated wiring
• Diagnostics at variable frequencies
• Also testing of very short cables > 500 pF

When carried out at fixed intervals TD testing can be the basis of a predictive maintenance program for your HV cables. The diagnostic report of the analysing software "TD Control Center" provides a comprehensive and clear record of the individual measurements made during a TD test cycle. with easy to interpret graphical display of the values offers a fast and accurate assessment of the dielectric condition of the cablee high voltage tan delta measurement suitable for testing XLPE, PE, EPR and PILC cables or other electrical equipment. The TD30 is designed to work with the HVA34 VLF test system making it suitable for testing 25kV and below cable systems. The unit is supplied with a host of accessories including rugged transport case, corona protection, Bluetooth dongle, jumper cable, ground cable, C type batteries and charger.
