Powerful software solution for HVA test sets b2 ControlCenter (b2CC) is a powerful software solution designed for all HVA test sets from b2 electronics portfolio. It features flexible and fast data acquisition, customized test sequences and extensive reporting capabilities. For HVA test sets with internal TD diagnostic unit, b2CC serves as a comprehensive diagnostics platform providing an even wider range of options, such as viewing the Monitored Withstand Test (MWT).

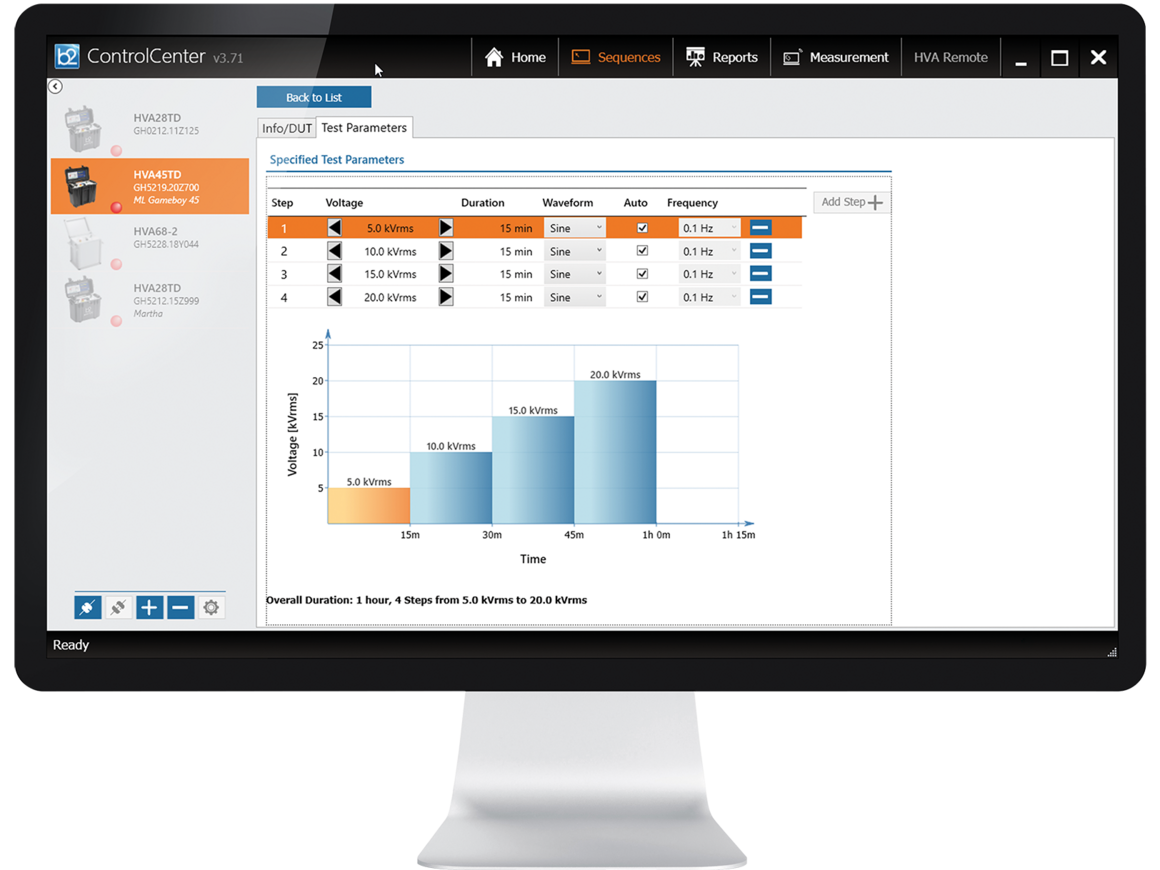

CUSTOMIZED TEST SEQUENCES

Individual test sequences can be created and uploaded to the test device in seconds and upload to your test device.

EASY REPORTING

Reports can be generated at the click of a button. Many different formats are available, allowing individual data processing and customized reporting of test results.MONITORED WITHSTAND TEST
b2CC visualizes live data of a simultaneously carried out VLF cable and TD diagnostic test as per IEEE 400.2.

REMOTE CONTROL (OPTIONAL)

Test sequences on the HVA generators can be both started and monitored remotely via computer to increase safety and convenience.

YOUR BENEFITS

  • automatic or manual modes for testing, TD and PD diagnostics
  • Guided Diagnostics Process - leads the operator through diagnostics step by step (sets or recommends measuring parameters)
  • precise localization of PD in cable insulation, terminations and joints
  • visualization of PD events over the total cable length
  • phase-resolved PD patterns
  • PD inception and extinction voltage
  • definition or recommendation of measuring parameters based on guides like IEEE 400.2 and 400.3 and in compliance with standards HD 620, CEI EN 50393, IEC 60270, IEC 60502-2 and their local derivations
  • analog and digital frequency filters
  • high noise suppression
  • automatic and manual trigger setting
  • device connect via Bluetooth (TD Family) or serial connection (PD Family)
  • comprehensive reports exported in formats PDF or XLSX
  • powerful and comprehensive database
  • direct mapping of cable trace (b2 Suite v2.0 or higher)
  • remote control via Live Mode (optional)
