Data sheet

Overview

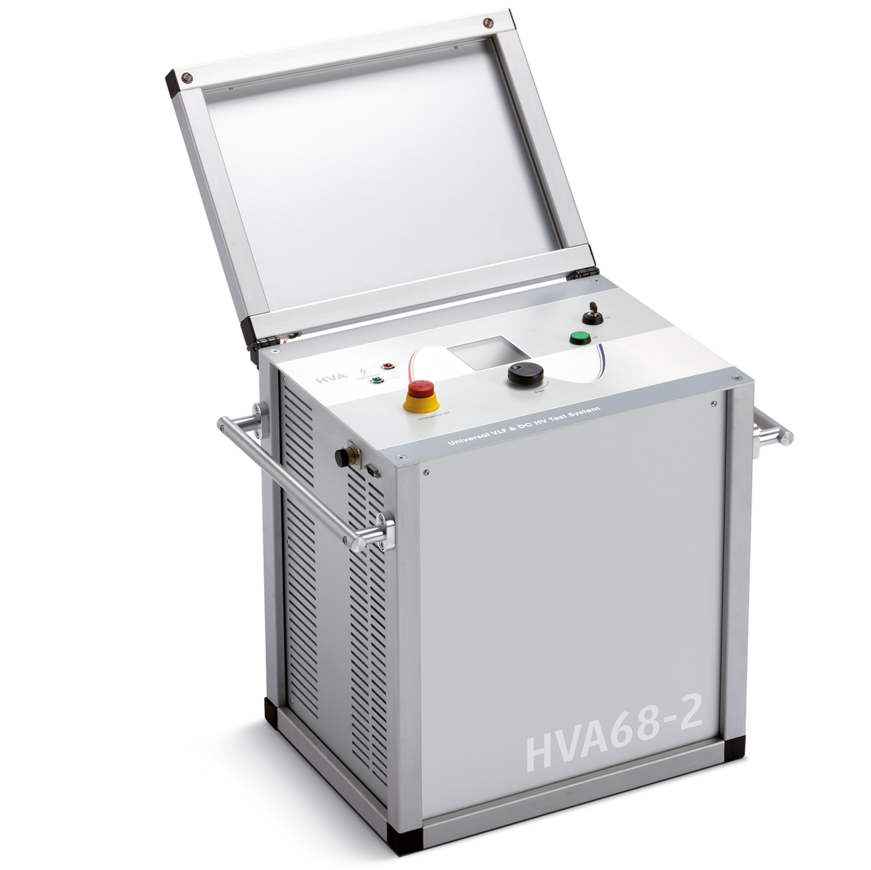

The compact design and unmatched high voltage output power to weight ratio of the HVA test sets are second to none in the market, and make the b2 electronic high-voltage generators the lightest in all classes at all voltage levels. Performance - With 2μF @ 0,1Hz @ 44kVrms HVA68-2 has double the power with no increase in size or weight. Dry system - The HVA68-2 test set is a dry type test system - with no oil filled components. This means less maintenance, compact and lightweight design and no limitation of operating time.

Features

  • Output voltage 48 kVrms
  • Pure sinusoidal output voltage (load-independent)
  • Output current 80 mA max
  • Highest test capacity of 10μF
  • Unlimited and continuous duty cycle
  • Cable testing
  • Programmable test sequences
  • PC software “b2 Control Center” with various reporting functions included
  • Upgradable with Partial Discharge diagnostic and Tan Delta Diagnostics
  • System (optional)
  • Breakdown voltage and load detection (R and C)

Performance

Unmatched output power to weight ratio. 2.0 μF @ 0.1 Hz @ 44 kVrms in comparison to 1.0 μF @ 0.1 Hz @ 44 kVrms (HVA60) That makes double the output power with no increase in size or weight. b2 electronics patented technology with pure sinusoidal VLF output voltage makes this device the most advanced and powerful HV device for cable testing.

Safety

The instrument has two independent earthing devices (electronic and mechanical discharging) and a 12 kV feedback protection system to protect both operator and instrument. Connectivity - On site, no external PC is needed. All results can be downloaded later by USB for further investigation and easy report creation on the PC software.

Duty cycle

Operating time of this test set is not thermally limited; it may operate continuously.

Safety first

The test set has two independent earthing devices (electronic and mechanical discharging) and an integrated 12 kV transient protection system (at 50 Hz) to protect both the operator and the device.

Connectivity

On site, no external PC is needed. All results can be later downloaded via USB for further investigation and easy reporting via software tool.
