Overview

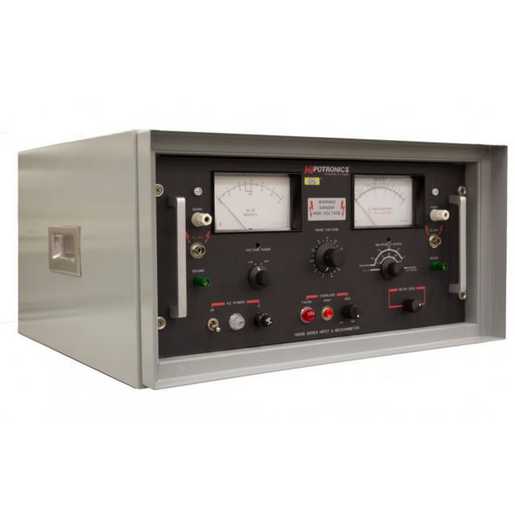

he H306B Bench Top AC and DC Hipot Tester with Megohmmeter is an accurate bench type instrument designed to perform insulation tests on all types of electrical system components, assemblies and apparatus. It is designed for ac dielectric tests, dc dielectric tests and insulation resistance measurements with direct megohmmeter readings at 500V dc output.The AC/DC output configuration eliminates the need for purchasing separate AC and DC hipots. Output connected voltmeter ensures accurate voltage measurements regardless of output loading. They are capable of testing to most industry specifications such as UL, CSA, VDE, IEC, and MIL for dielectric withstand testing.

Features

• Continuously adjustable test voltage from zero to rated voltage
• Shielded output cable
• Adjustable Overload from 10 to 110% of rated current output
• Audible/Visual alarms provide a clear indication of overload situation
• Zero start interlock ensures that the voltage control is at zero before HV can be energized
• Shorting solenoid grounds output cable and object under test
• Guard Circuit bypass unwanted stray leakage currents
• Adjustable electronic meter for accuracy

Benefits

• Three Tests in One Unit which eliminates the need to purchase separate AC and DC Hipots and a megohmmeter
• Operator Safety: the power supply and test object are automatically grounded when high voltage is turned off
• Meets Industry Specifications and tests to most UL, CSA, VDE, IEC, MIL for dielectric withstand testing
• Rack Mountable for easy installation into a 19" rack

Accessories

• Grounding Stick: 120kV DC Max Voltage
• Fixed Test Probe: 25kV Max voltage
• Test Cage: 25kV Max Voltage
• Spare Parts Kit
• Extra Test Lead
• Extended Warranty: One year extended warranty
