Overview

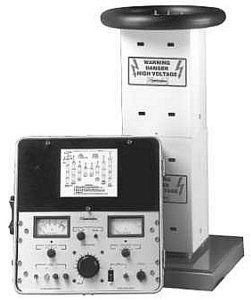

The 8000 Series DC Hipot Testers offer a 60 to 300 kV range in a convenient cascade design. These systems are air insulated, with each module individually capable of producing 60 kV at 16 mA. The standard power rating is 2 kW. Low leakage measurement, even with fluctuating line voltage, is possible with the 1% line regulator. The design also offers reversible polarity. Available models: 8060PL, 8120PL, 8180PL, 8240PL, 8300PL.

Features

• Expandable from 60 kV to 300 kV
• Rugged, portable and modular construction
• High current output for testing large loads
• Reversible polarity
• Ripple less than 0.2% per mA
• Analog kilovolt and current meters
• Zero start interlock and external interlock provisions for safety during operation
• Anti-corona toroid
• Compact control unit allows remote positioning ideal for field use
• Momentary current reversal switch
• Optional high voltage shorting solenoid

Benefits

• Ideal for field testing - compact lightweight and rugged makes it suitable for field orientated applications.
• Quick and easy - a modular system limits the setup time and user-friendly controls make it simple to use.
• Modular Construction - bring only the number of modules necessary for the required voltage.
• Easily Transportable - Air-insulated modules make it light weight and simple to transport in a van or pickup truck.
• Accurate Leakage Current Measurements - while guard circuit eliminates stray leakage currents.

Ordering Information

8060PL 0 to 60kV, 16mA DC Hipot Tester 8120PL 0 to 120kV, 8mA DC Hipot Tester 8180PL 0 to 180kV, 5.5mA DC Hipot Tester 8240PL 0 to 240kV, 4.1mA DC Hipot Tester 8300PL 0 to 300kV, 3.3mA DC Hipot Tester
