Overview
The PTC-2 Phase Tracer is designed to positively identify the cable phases in a location where many cables come together, as in a manhole. These types of cable are used in power circuits, feeders and distribution networks. The device will also identify the individual phases in a three-phase power cable. The PTC-2 Phase Tracer has three major components: a pulse transmitter, a pulse detector phase tracer, and a pick up coil.For best results the cable should be disconnected from any load impedance with the three-phase conductors tied together and grounded at the far end. However, the device will operate satisfactorily while still connected to low impedance loads.
Features

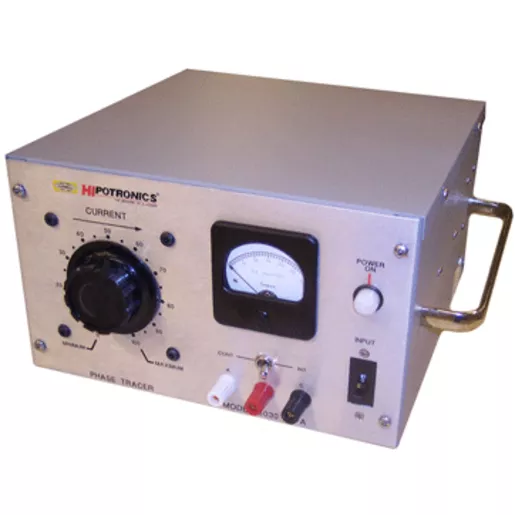

- ransmitter (8030TC / 8012TC): Continuously adjustable output current
- Low operating voltage
- Output ammeter
- Input circuit breaker switch with “on” pilot light
- Detector (TCD2A): High gain transistor amplifier circuit
- Sensitive pickup coil
- Rotary switch with “off” plus five sensitivity level
- 50 division meter indicating relative strength of signal
- Effective Identification - device can be used on shielded cable, unshielded cable and lead-jacketed cable
- Complete, compact and portable - for simple and quick use in the field
- Simple Operation - with a minimal amount of user training testing can begin
Accessories
- 8030TC: Extra Transmitter (30V ,3A) and Test Lead
- 8012TC: Extra Transmitter (12V, 30A) and Test Lead
- TCD2A: Extra Detector
- 8030-LS: Extra Test Leads
- EXT-WARN-1: One year extended warranty
