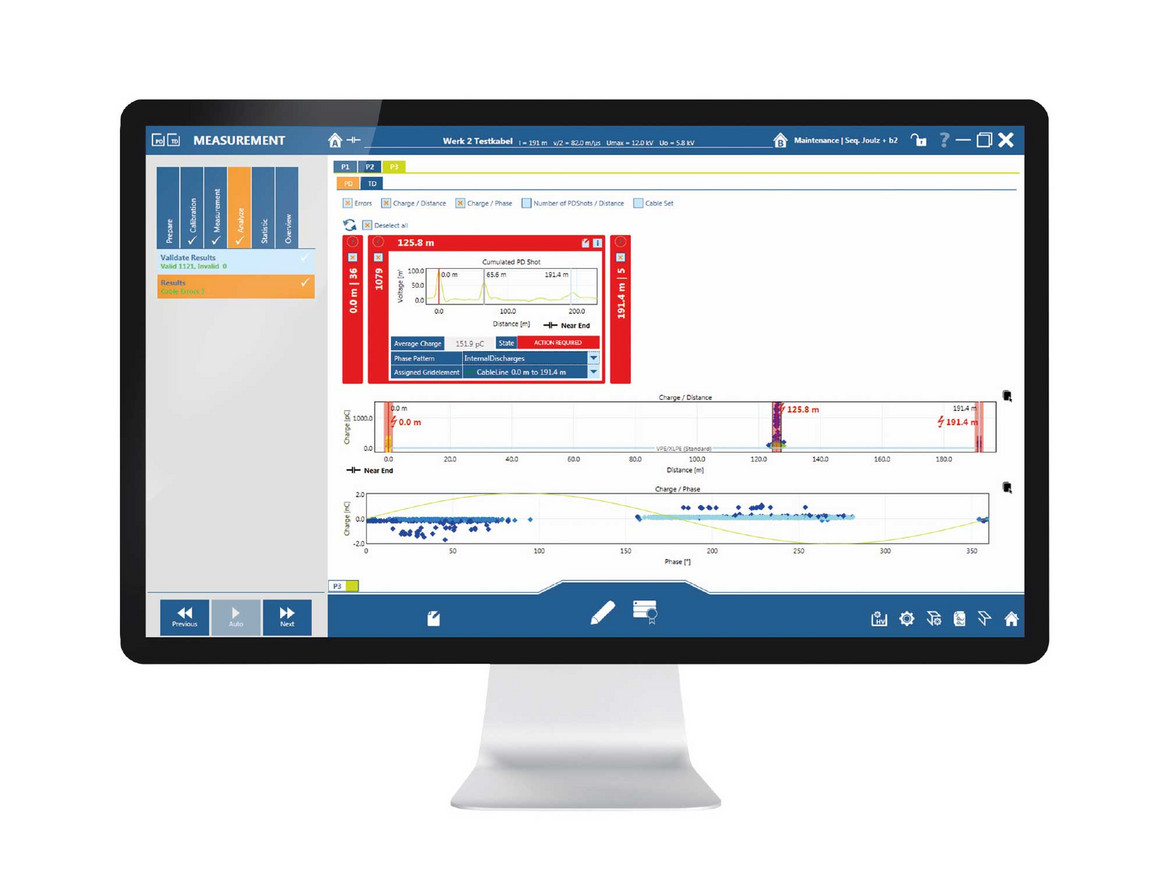

Software solution for testing, diagnosis and reporting management

b2 Suite is an all-in-one computer software. It leads you through the entire cable testing process including VLF testing, TD and PD diagnostics, measurement data analysis and reporting, live. At the same time, it serves as a comprehensive database, making the analysis and evaluation of the measured data easy and comprehensive. It allows fast comparisons with past measurements and performing reproducible measurements.

SIMULTANEOUS PD AND TD MEASUREMENT (b2 Suite V2.0 OR HIGHER)

The parallel measurement of PD and TD results in significant time savings. In addition, it prevents negative influence on the results of the second test carried out due to feeding high test voltages during the first test.

RELIABLE DETECTION OF PD ACTIVITIES

The intelligent algorithms of the software separate valid and invalid PD signals during measurement. This simplifies the interpretation of measurement results.

MONITORED WITHSTAND TEST

In combination with TD devices (and PD devices), the b2 Suite v2 software provides an additional comprehensive assessment (acc. IEEE 400.2) of your cable system, live.

EASY AND INDIVIDUAL REPORTING

b2 Suite allows both simple and fast as well as individual and comprehensive reporting. Measurement data and additional files are included with the click of a button, allowing completion of measurements including reporting in only 15 minutes.

YOUR BENEFITS

  • automatic or manual modes for testing, TD and PD diagnostics
  • Guided Diagnostics Process - leads the operator through diagnostics step by step (sets or recommends measuring parameters)
  • precise localization of PD in cable insulation, terminations and joints
  • visualization of PD events over the total cable length
  • phase-resolved PD patterns
  • PD inception and extinction voltage
  • definition or recommendation of measuring parameters based on guides like IEEE 400.2 and 400.3 and in compliance with standards HD 620, CEI EN 50393, IEC 60270, IEC 60502-2 and their local derivations
  • analog and digital frequency filters
  • high noise suppression
  • automatic and manual trigger setting
  • device connect via Bluetooth (TD Family) or serial connection (PD Family)
  • comprehensive reports exported in formats PDF or XLSX
  • powerful and comprehensive database
  • direct mapping of cable trace (b2 Suite v2.0 or higher)
  • remote control via Live Mode (optional)
