Overview

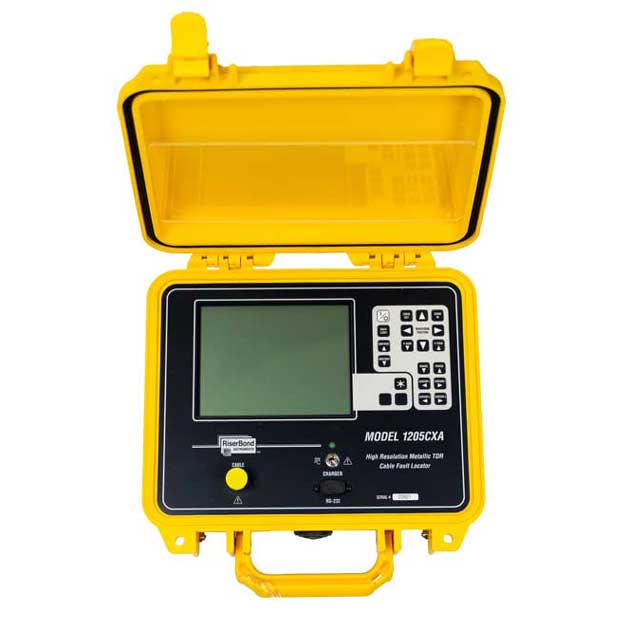

The 1205 provides a rugged portable solution to locate cable abnormalities such as neutral corrosion, bad splices, shorts or open in the cable. With an easy to use menu-driven display, the TDR can quickly be connected to a standard PC to download the stored TDR traces. Its advanced features provide a unique solution to detection of both gross and subtle issues in a cable system. We believe in providing a complete solution to our clients and the TDR compliments the other MV cable diagnostic tools, such as Tan Delta and Partial Discharge. We recommend that whenever possible and applicable, all cables should be TDR'd before performing a cable diagnostic or withstand test.

Features:

  • Adjustable Sub-ns pulse output
  • Rugged, water proof case
  • Easy to use
  • PC connectivity
  • Auto / Manual Range adjustment
  • TDR trace storage
  • Dual Independent Cursors
  • Auto fault find
  • Adjustable VOP in %, ft/uS or m/uS
  • Supplied PC based Software to download and analyze TDR traces

Technical Specifications

Physical Dimensions:
10.5 x 9.75 x 5 inches 267 x 247.6 x 127 mm
Weight
6 lbs / 2.7 kg
Power:
Battery
Internal, rechargeable, 7.2V Nickel metal hydride
Charging Source
External 12 VAC transformer, 1.3A
Operating Time
Greater than 6 hours, continuous without backlight
Environmental:
Operating Temperature
0°C to 50° C / 32°F to 122°F
Typical Temperature
-15° C to +60° C / 5° F to +140° F
Storage Temperature
-20°C to +60°C / -4° F to +140° F
Humidity
95% maximum relative humidity, non-condensing
Display
320 x 240 dot-matrix, liquid crystal display (LCD) with cathode fluorescent (CFL) backlighting
Maximum Range:
63,700 feet (19,400 meters) at .990 VOP 51,500 feet (15,500 meters) at .800 VOP Range varies with VOP. Maximum testable cable length varies with pulse width and cable type.
Horizontal Resolution:
Up to 2,000 ft (610 m):
< .05 ft (.03 m) at .990 VOP < .02 ft (.01 m) at .300 VOP
Over 2,000 ft (610 m):
1 ft. (.1 m) at any VOP
Vertical Resolution:
14 bits with 170 dots displayed
Vertical Sensitivity:
Greater than 65 dB
Output Connector:
Front panel Female BNC
Input Protection:
400 volts (AC + DC) from DC to 400 Hz and decreases to 10 volts at 1 MHz
Distance Accuracy:
Accuracy will vary with cable VOP and cable type. +/- .1 ft (.03 m) plus +/- .01% of reading
Serial I/O Port:
RS-232
Output Pulses:
Selectable output pulse widths
Auto dBRL:
2 digit auto return calculation at cursor setting
Waveform Storage:
Each with full vertical resolution
Standard
8 waveforms
Optional
32 waveforms
